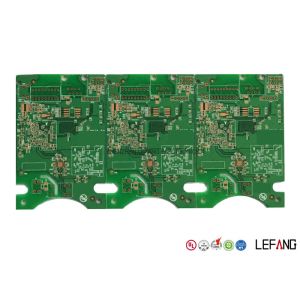

GPS Receiver Module Multilayer PCB Circuit Board with Green Solder
Mask
The layer count of the Multilayer PCB Board is 4 Layers, which is a
PCB for GPS receiver module. While the surface treatment of the
multilayer PCB Board is OSP. Also, the board size of this PCB
Circuit Board is 51 * 77 mm, and the minimum aperture is 0.3 mm.
What We Can Do for You?
With over 18 years experience, we offer OEM & ODM PCB Layout, PCB Design, PCB manufacturing and
PCB Assembly in single-sided PCB Board, double-sided PCB and Multilayer Printed
Circuit Board service to
our customers, with total production capacity of 290,000 sqm/month.
How to get quick quotation?
| Step 1 Please send us Gerber file with these format: .CAD / .Gerber / .PCB / .DXP / .P-CAD, etc |
| Step 2 Also please provide us the below details for quick quotation: |
Board material: Fr - 4 / CEM - 1 / CEM - 3 / 22F / Fr - 1 / others |
| Material brand: SY / KB / Rogers (optional) |
| Material Specification:High Tg / copper based / aluminum based or
others (optional) |
| Board thickness: 0.1 - 6.0 mm |
| Copper thickness: 0.05 Oz - 8 Oz ( 17 um - 288 um ) |
| Surface Treatment: OSP / ENIG / HASL / Lead Free HASL / Immersion
Tin / Immersion Sin |
| Color of solder mask and silk print: Green / red / blue / black /
white / yellow ,etc |
| Board size and quantity |
If you don't have Gerber file, please provide us the imfomation as
step 2 or post your PCB Board to us for clone.
|
SAMPLE:
|
Board Basic Info - SAMPLE | Board material | Fr - 4 | Material brand | KB | Material Specification | Tg 170 | Board thickness | 1.6 mm | Copper thickness | 1 Oz | Surface Treatment | ENIG | Solder mask / sSilk print | Green / White | Board size | 100 mm * 100 mm | Quantity | 10k |
|
Lead Time
| Layer count | Sample lead time/workday | Batch lead time/workday |
| 1-2L | 2 | 6 |
| 4L | 5 | 8 |
| 6L | 5 | 9 |
| 8L | 6 | 10 |
| 10L | 8 | 10 |
| 12L | 8 | 12 |
| 14L | 10 | 15 |
| 16L | 10 | 18 |
| 18-40L (Up to difficulty) | at least 18 | at least 24 |
| P.S. For HDI, Blind/Buried Hole PCB: Regular Lead Time + 3 workdays |
How many advanced automated equipments do we have?
-- We have spent massively on purchasing below advanced automated
production equipments.
| Equipment Name | Plant in Shenzhen | Plant in Dongguan |
| CCD exposure machine | 8 | 12 |
| AOI test machine | 6 | 8 |
| Mechanical drilling rig | 26 | 53 |
| Automatic edge finishing machine | 2 | 2 |
| Pressing machine | 2 | 2 |
| VCP | 0 | 2 |
| Electroplating line | 1 | 2 |
| CNC routing machine | 12 | 12 |
| Automatic tester | 10 | 16 |
Now send us your inquiry, and you will be replied within 8 hours!
Little knowledge - Thick copper PCB
Electronics are used in demanding environments and operate at
higher currents in these days.
Thick copper PCB can help conduct heat away from components and
withstand high current, satisfying the market of power conversion
module boards which is used in automobile electronics and electric
equipment.
Heavy copper PCBs means copper conductors 5 oz/ft2 – 19 oz/ft2 in
inner and/or outer layers; sometimes defined as more than 4 oz per
square foot (ft2).
These boards can be manufactured in a smaller footprint as they can
contain multiple weights of copper on the same circuit layers.
