    Multilayer PCB Circuit Board 6 Layers 0.8mm Board Thickness With Black Soler

    Ask Lasest Price
    Brand Name : LEFANG
    Model Number : OT7006L552
    Certification : ISO9001, ISO14001, ISO/TS16949, SGS, UL, RoHs,OHSAS18000
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 290, 000sqm Per Month
    Delivery Time : 2-10 work days
    • Product Details
    • Company Profile

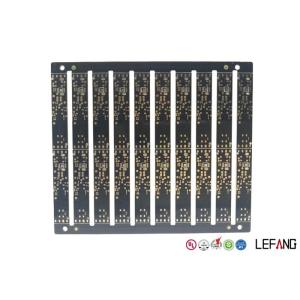

    Multilayer PCB Circuit Board 6 Layers 0.8mm Board Thickness With Black Soler

    Multilayer Circuit Board PCB with Black Soler Msak


    The 0.8 mm board thickness 6 layers PCB Board is applied to consumer electronics. While the surface treatment of the PCB Board is ENIG with black solder mask. Also, the line width and spcaing of this PCB Circuit Board are both 0.1 mm, and the minimum aperture is 0.2 mm.


    Technical Data
    ItemDetails
    Max layer count20 L
    Max board thickness6.0 mm
    Max aspect ratio10 : 1
    Max copper thickness6 OZ
    Max dimension600 * 700mm
    Min thickness of 4 layers PCB0.4 mm
    Min hole / pad0.15 / 0.35mm
    Hole location accuracy+ / - 0.05mm
    PTH hole tolerance+ / - 0.05mm
    Min line width and line space0.065 / 0.065mm
    Surface treatment

    HASL / HASL lead free, OSP


    Immersion gold/silver/tin, gold plating (hard gold and soft gold),


    silver plating, tin plating, platinum plating, carbon ink,


    ENEPIG

    (electroless nickel - electroless palladium - immersion gold)

    How to get quick quotation?

    Step 1 Please send us Gerber file with these format: .CAD / .Gerber / .PCB / .DXP / .P-CAD, etc
    Step 2 Also please provide us the below details for quick quotation:

    Board material: Fr - 4 / CEM - 1 / CEM - 3 / 22F / Fr - 1 / others

    Material brand: SY / KB / Rogers (optional)
    Material Specification:High Tg / copper based / aluminum based or others (optional)
    Board thickness: 0.1 - 6.0 mm
    Copper thickness: 0.05 Oz - 8 Oz ( 17 um - 288 um )
    Surface Treatment: OSP / ENIG / HASL / Lead Free HASL / Immersion Tin / Immersion Sin
    Color of solder mask and silk print: Green / red / blue / black / white / yellow ,etc
    Board size and quantity


    If you don't have Gerber file, please provide us the imfomation as step 2 or post your PCB Board to us for clone.

    SAMPLE:

    Board Basic Info - SAMPLE

    Board material

    Fr - 4

    Material brand

    KB

    Material Specification

    Tg 170

    Board thickness

    1.6 mm

    Copper thickness

    1 Oz

    Surface Treatment

    ENIG

    Solder mask / sSilk print

    Green / White

    Board size

    100 mm * 100 mm

    Quantity

    10k


    What kinds of quality Raw Materials will be used?

    Board BrandITEQ, SY, Isola. Rogers, Arlon, Nelco, Taconic, Hitachi, KB,etc
    PotionRohm & Haas, Atotech, Umicore
    Printing InkTaiyo, Rongda
    Dry FilmAsahi, Dupont, Etertec

    Now send us your inquiry, and you will be replied within 8 hours!


    PCBs Consumer Electronics Applications

    Nowadays, we cannot live without Consumer electronics, which is one of the most important things in our daily life. And the PCBs(Printed Circuit Boards) are the heart of the consumer electronics. Without PCBs the consumer electronics will not able to work anymore. The following application of the PCBs will make you understand how significant they are. Mobile devices such as smart phones and tablets are necessary for us. From playing music to sending e-mail, none of these processes would be possible without PCBs. In addition, computer electronics, entertainment systems and home appliances all contain PCBs at their cores.
